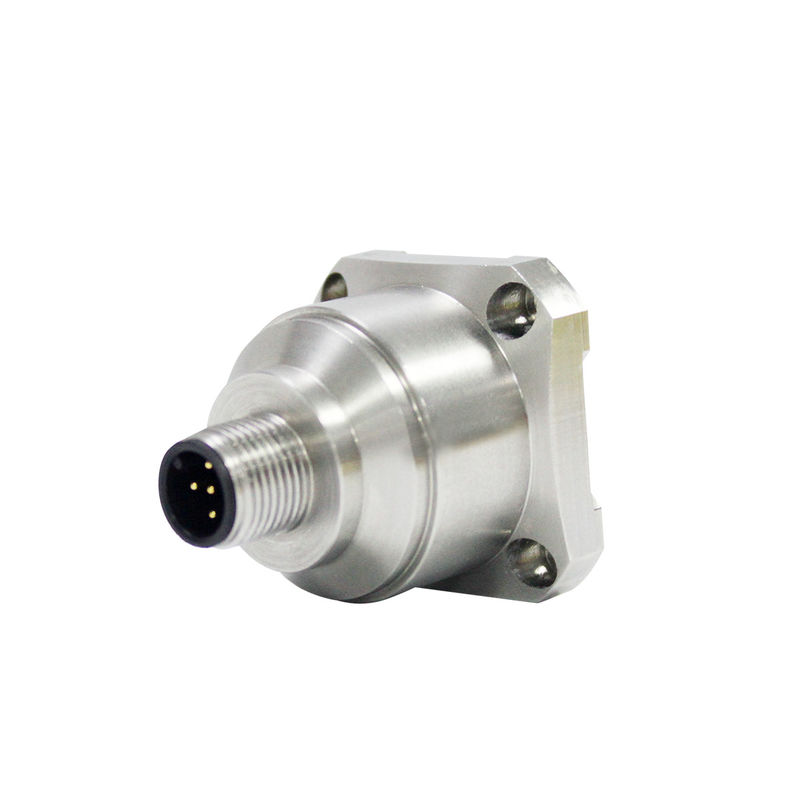

triple axis vibraton meter analog output vibration sensor motor vibration measure sensor
PRODUCT PARAMETERS
| AKF398-A1 | PARAMETER | UNIT | |||||
| Range | ±2 | ±4 | ±8 | ±10 | ±20 | ±40 | g |
| Deviation Calibration | <1 | <1 | <1 | <1 | <1 | <1 | mg |
| Measuring Axial | X,Y,Z | X,Y,Z | X,Y,Z | X,Y,Z | X,Y,Z | X,Y,Z | axis |
| Up/Off Power Repeatability | <2 | <2 | <2 | <2 | <2 | <2 | mg(max) |
| Sensitivity (± 10%) | 4 | 2 | 1 | 0.8 | 0.4 | 0.2 | mA/g |
| Deviation temperature coefficient | 0.01 | 0.01 | 0.01 | 0.05 | 0.05 | 0.05 | %/℃ |
| Resolution/Threshold (@ 1Hz) | < 1 | < 1 | < 1 | < 1 | < 1 | < 1 | mg(max) |
| Nonlinearity | <0.5 | <0.5 | <0.8 | <1 | <1 | <1 | % FS(max) |
| Frequency response | 500 | 500 | 500 | 500 | 500 | 500 | Hz |
| Bandwidth (3Db) | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | Hz |
| Cross-axis sensitivity | 1 | 1 | 1 | 2 | 2 | 2 | % |
| Lateral vibration sensitivity ratio | 1 | 1 | 2 | 5 | 5 | 5 | % |
| Resonant frequency | 2.4 | 2.4 | 2.4 | 5.5 | 5.5 | 5.5 | kHz |
| noise density | 21 | 21 | 21 | 86.6 | 86.6 | 86.6 | μg/√Hz |
| 0g output 12mA | <0.005 | <0.005 | <0.005 | <0.003 | <0.003 | <0.003 | mA |
| Output current | 4~20mA | ||||||
| Reliability | MIL-HDBK-217,grade two | ||||||
| Shock Resistance | 100g@11ms,3 Axial Direction (Half Sinusoid) | ||||||
| Recovery Time | <1ms(1000g, 1/2 sin 1ms, Shock Acting On The i Axis) | ||||||
| Vibration | 20g Rms,20~2000Hz (Random Noise ,o ,p,i Per Axis For Action 30 Minutes ) | ||||||
| Input(VDD_VSS) | 9-36 VDC | ||||||
| Running current consumption | <60mA @ 12 VDC | ||||||
| Connector | Industrial Standard M12 Connector | ||||||
| Protection grade | IP67 | ||||||
| Weight | 73.5g | ||||||
| Dimension | 34.3*34.3*38.5mm | ||||||
