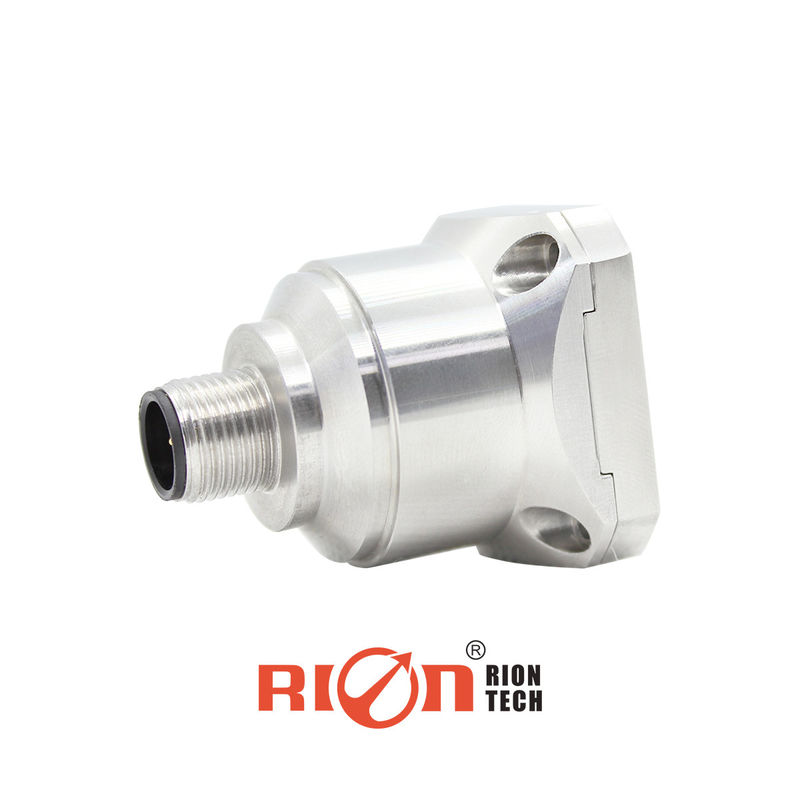

AKF398 CE MEMS Based Vibration Sensor 20mA Current Vibration measurement

AKF398 CE MEMS Based Accelerometer Sensor 20mA Current Vibration measurement

The AKF398 triaxial VIBRATION SENSOR is a voltage output type VIBRATION SENSOR independently developed and produced, which can be used in many fields such as vibration test and impact test. The product adopts analog voltage output, AKF398 is a single crystal silicon capacitive sensor, which consists of a silicon chip processed by micro-machines, a low-power ASIC for signal adjustment, a microprocessor for storing compensation values, and a temperature sensor. This product has low power consumption, calibrated, sturdy structure and stable output. The new electronic configuration provides solid-state power for reset and comprehensive protection from over-voltage. The products have the characteristics of sturdy structure, low power consumption, excellent deviation stability, etc., to ensure the reliability of product output.

• three axis (X,Y,Z)
• output voltage: 4-20mA
• power supply:9-36V
• anti-impact:2000G
• working temperature: -40°C ~ +85°C
• store temperature: -40°C ~ +85°C
• size: L34.3×W34.3×H38.5mm
• excellent bias stability
• Good environmental performance (impact, vibration and temperature)

• Crash record, fatigue monitoring and prediction
• Wind power generation
• Traffic system monitoring, roadbed analysis and high-speed railway fault detection
• Large machinery, engine
• Low frequency vibration and automatic monitoring
• Medical equipment
• Bridge
• Vehicle
• Road roller
