Product Details
Place of Origin: Guangdong, China
Brand Name: RION
Certification: CE, ISO
Model Number: TL740D-485-MODBUS
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: $235.00/Pieces >=1 Pieces
Packaging Details: 1pcs angular sensor in each inner box , 100pcs /ctb
Delivery Time: 7 days for samples
Payment Terms: T/T, Paypal
Supply Ability: 3000 Piece/Pieces per Month angular sensor to be sold
Angular Sensor Resolution: |
0.01° |
Measuring Range: |
Azimuth Angle (±180 °) |
Acquisition Bandwidth: |
>100 Hz |
Azimuth Accuracy: |
<0.1°/min |
Max Angle Rate: |
≥300 °/s |
Working Temp.: |
-40 ~ +85 ℃ |
Storage Temp.: |
-40 ~ +85 ℃ |
Vibration: |
5g~10g |
Working Life: |
10 Years |
Angular Sensor Resolution: |
0.01° |
Measuring Range: |
Azimuth Angle (±180 °) |
Acquisition Bandwidth: |
>100 Hz |
Azimuth Accuracy: |
<0.1°/min |
Max Angle Rate: |
≥300 °/s |
Working Temp.: |
-40 ~ +85 ℃ |
Storage Temp.: |
-40 ~ +85 ℃ |
Vibration: |
5g~10g |
Working Life: |
10 Years |

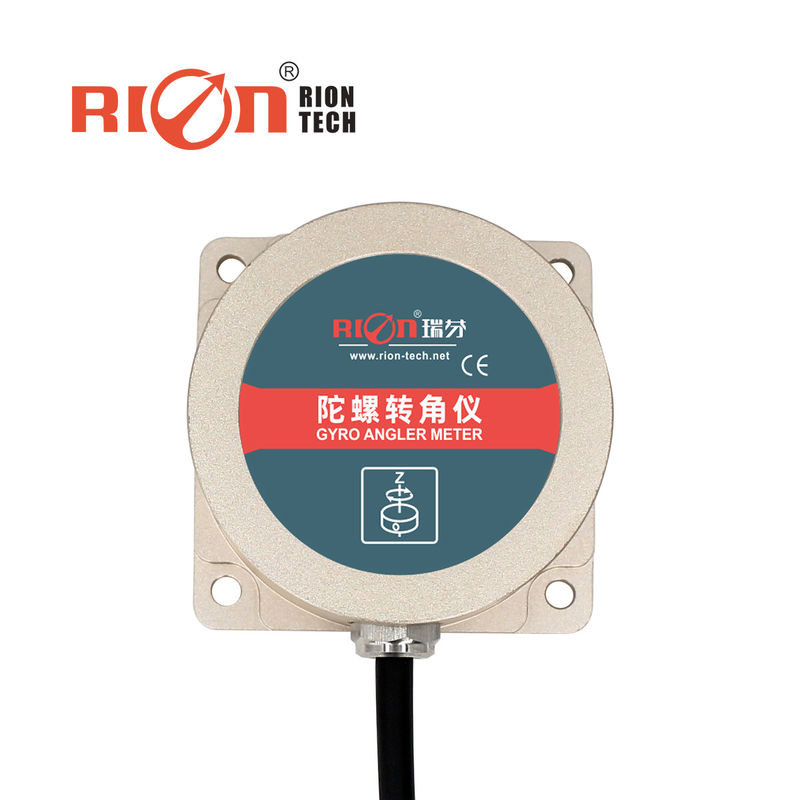

DC AGV MEMS Gyroscope Sensor Anti Vibration
TL740D ANGULAR GYRO SENSOR for AGV angle sensor fo...
TL740D is RION-TECH newly developed horizontal relative heading angular gyro sensor based on latest MEMS inertial measurement platform , by means of the dynamic attitude algorithm for the angular velocity of gyroscope ,it can simultaneously output carrier’s relative heading angle .The product inernal integrated RION’s Patent Inertial navigation algorithm, through the model of attitude angle data fusion , can solve the gyro short time drift problem as much as possible .
This product is specially used for robot car, AVG vehicle relative heading orientation, attitude control and other related applications of the UAV, instead of the traditional robot vehicle magnetic bar guide shortcomings, no need at the site layout of magnetic stripe, is the necessary navigation components for the next generation of robot vehicle automatic tracing and driving.
Key Features
Application
| TL740D | PARAMETERS |
| Mesuring range | relative heading Angle (±180°) |
| Acquisition bandwidth | >100Hz |
| Resolution | 0.01° |
| relative heading accuracy | <0.1°/min |
| positional accuracy | <2mm/m (converted from angle accuracy) |
| Nonlinear | 0.1% of FS |
| Max angle rate | 150°/s |
| Accelerometer range | ±4g |
| Acceleroemter resultuion | 0.001g |
| Acceleroemter accuracy | 5mg |
| Starting time | 5s(Static) |
| Input Voltage | DC9V~36V |
| Current | 60mA(12V) |
| Working Temp. | -40 ~ +85℃ |
| Storage Temp. | -40 ~ +85℃ |
| Vibration | 5g~10g |
| Impact | 200g pk,2ms,½sine |
| Working life | 10 years |
| Output rate | 5Hz / 15Hz / 25Hz / 50Hz / 100Hz Can set |
| Output signal | RS232 / RS485 / TTL (Optional) |
| MTBF | ≥98000 hours /times |
| Insulation resistance | ≥100 Megohm |
| Impact resistance | 100g@11ms,3 Axial Direction (Half Sinusoid) |
| Anti-vibration | 10grms,10～1000Hz |
| Protecting | IP67 |
| Weight | ≤150g (including 1 meter cable) |
We can offer :
Our main products :
Order Process :
Before order pls contact us for confirm detailed informaiton such as model ,price ,lead time ...etc .
Payment ways :
T/T, WU or Paypal;
Delivery methods & Time :
DHL takes 3-5days , Fedex takes 2-7 days , UPS takes 3-7day , EMS takes 10-25days ;
Quality Policy :
We gurantee 1 year in free charge .
Storage :
Note usually we don't make any items in stock , samples customize time need around 3-7days .
