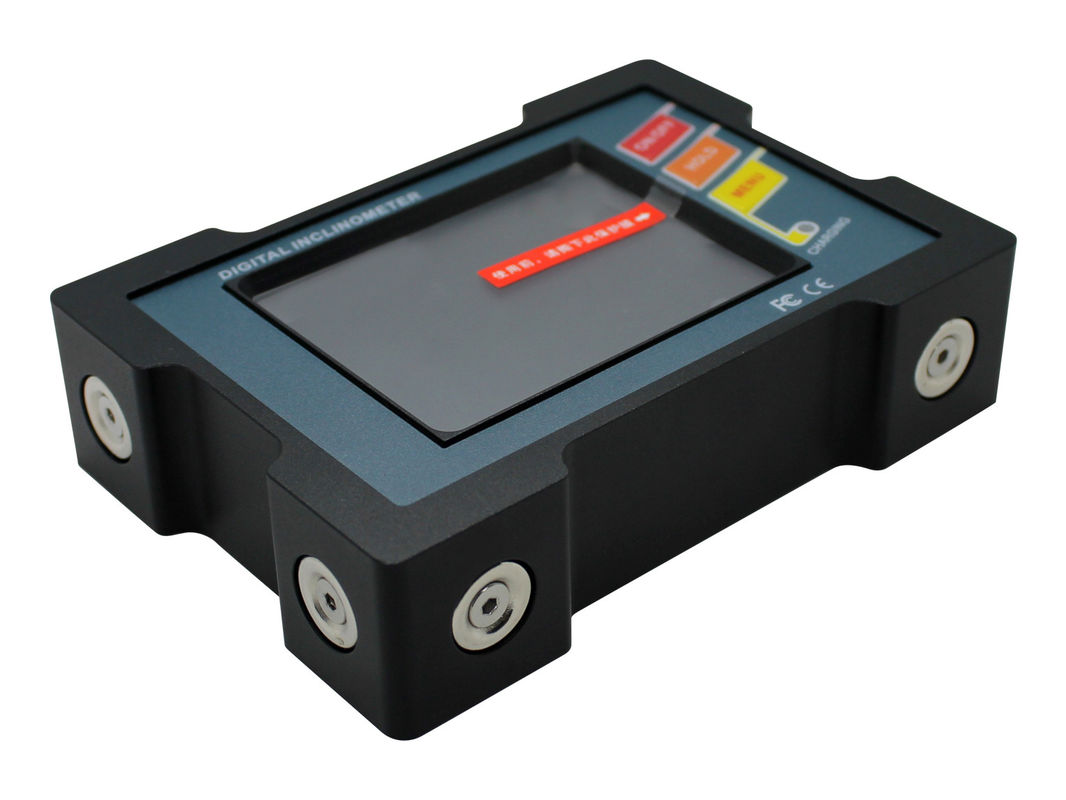

DMI820 Magnetic Base Digital Bevel Gauge Low Range angle monitor Portable 2 Axis Digital Inclinometer
▶ GENERAL DESCRIPTION
DMI810&DMI820 is a digital display inclinometer which took RION company three years to develop professional for various industry angle controling and measuring.The core of this product is using the micro-mechanical control principle, dual-core measurement unit, can use the Y-axis to compensate X-axis during the measurement process,and then to use RION patent interleaved and temperature compensation model algorithm to play absolute operation advantages of the micro-mechanical electronic principles,to ensure that the instruments measurement with the long-term stability and repeatability. Single and double axis measurement, measurement range ±30° measurement, resolution 0.001°, highest accuracy <0.005° full value,fast response, stable data, products specially designed for the sides and bottom with magnetic adsorption installation, both sides of the benchmark can be measured and using normally,very convenient to use, DMI810 series has strong scalability, convenient & practical application and industrial reliability, has absolute cost advantage and has an absolute competitive advantage in the international market !
▶ FEATURES
★ Best accuracy:<0.005° ★ Repeatability:0.003°
★ Angle resolution:0.001° ★ Maximum measure range:±30°
★ User can set the alarm value by himself ★ Data store function
★ Absolute/Relative measurement can switch ★ Both sides and bottom can measure
★ Double benchmark strong magnet installation ★ Working Temperature : -10°～ +70℃
★ Auto-angle interleaved compensation function ★ Auto temperature drift compensation
★ User can calibrate ZERO by himself ★ Built-in rechargable industry batteries
★ Night vision fours colors screen ★ IP54 protection class
★ °/mm/m Dual units switch function ★ Filter frequency optional
★ Three kinds of measurement mode selectable (radian, angle, mm)
▶ APPLICATION
★ Building construction ★ Automobile four-wheel testing ★ Road slope
★ Machinery installation ★ Piping installation ★ Industrial platform
★ Turntable testing ★ Pan unit angle detection ★ Production jig
▶ TECHNICAL DATA
 PARAMETER | DMI810 | DMI820 | UNIT | |||
| Angle Measure range | ±15 ° | ±30 ° | ±15 ° | ±30 ° | ° | |
| MM measure range | 267 | 577 | 267 | 577 | mm/m | |
| Meausre axis | Single axis | Single axis | Single axis | Single axis | ||
| Highest measurement accuracy (full range) | <0.005 | <0.01 | <0.005 | <0.01 | °(RMS) | |
| Angle Measure resolution | 0.001 | 0.001 | 0.001 | 0.001 | ° | |
| Repeatability | 0.003 | 0.003 | 0.003 | 0.003 | ° | |
| MM measure accuracy | 0.1 | 0.2 | 0.1 | 0.2 | mm/m | |
| Three measurement mode selectable | ①Angle ②degree, minute, second ③mm/m three modes can be set | / | ||||
| MM measure res | 0.02 | mm/m | ||||
| LCD | 64 true colors night vision display screen | / | ||||
| LCD visible area size | L57.6*W43.2 | mm | ||||
| Working temperature | -10°~ +70℃ | ℃ | ||||
| Working humidity | 85 | %RH | ||||
| Power supply | 3.7V Charging Lithium battery | V | ||||
| Ideal charging time | 5 | h | ||||
| Battery sustainable charging times | 11 | h | ||||
| Equipped with PC software | VC software | / | ||||
| Data output signal | USB1.1 (Virtual Serial Device) | / | ||||
| Connect plug in | Standard USB connector, rechargeable | / | ||||
| Shock resistance | 10g@11ms,3 Axial Direction (Half Sinusoid) | g | ||||
| Shock impact | 10grms,10~100Hz | g | ||||
| Waterproof grade | IP54 | / | ||||
| Material | Aluminum alloy Anodizing | / | ||||
| Size | L107*W75*H27.1 | mm | ||||
| Weight | 300 | g | ||||
