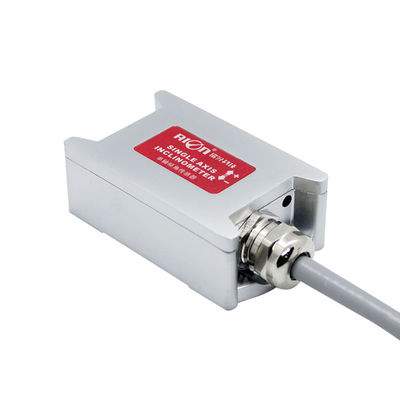

IP66 Anti Shock Analog Inclinometer Sensor PV Controller For Solar Tracker

Product Details

Place of Origin: Guangdong, China

Brand Name: RION

Certification: CE

Model Number: MCA416-232

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: $35/Pieces

Packaging Details: CARTON

Delivery Time: 7 days for samples

Payment Terms: T/T, Paypal

Supply Ability: 1000 pcs per Month

Get Best Price
Contact Now
Specifications
Highlight:

analog inclinometer sensor anti-shock

,

IP66 analog inclinometer sensor

,

PV Controller analog tilt sensor

Type:
Level Sensor
Product Name:
Inclinometer
Measuring Axis:
X/Y
Power Supply:
DC 9~36V
Measuring Range:
Within 360 Deg
Best Accuracy:
<0.2°
Angle Resolution:
0.1°
Working Temperature:
-40°~ +85℃
Size:
L61*W35*H21mm
Response Time:
0.05 S
Certificate:
CE ISO
Port:
SHENZHEN
Type:
Level Sensor
Product Name:
Inclinometer
Measuring Axis:
X/Y
Power Supply:
DC 9~36V
Measuring Range:
Within 360 Deg
Best Accuracy:
<0.2°
Angle Resolution:
0.1°
Working Temperature:
-40°~ +85℃
Size:
L61*W35*H21mm
Response Time:
0.05 S
Certificate:
CE ISO
Port:
SHENZHEN
Description
IP66 Anti Shock Analog Inclinometer Sensor PV Controller For Solar Tracker



Solar Tracker Inclination Meter Low Cost Tilt Sensor for PV Controller Angle Sensor Price

General Description

MCA426M is a MODBUS output inclinometer designed especially for industrial position control. It adopts RS485 hardware differential bus transmit data. It built-in high accuracy 12 bit A/D differential conventor, using third order filter algorithm to measure the pitch and roll angle relate to horizontal level. It could redress the temperature drift according to the inside temperature change, ensuring the high repeatability when it is under high and low temperature. The output respond frequency could reach 20Hz, high frequency could be customized. It is industrial level product with reliable performance, good expandability, multiple output types are optional, and it could apply to kinds of harsh industrial working condition.





Feature

●single/dual axis

●measuring range ±45°

●accuracy:±0.5°
●DC 9~36V input

●working temp-40~+85℃

●resolution: 0.1°
●IP66

●anti-shock>2000g

●direct lead interface
●size:L61×W35×H21mm

●output type: MODBUS



Technical data
Item
Conditions
≤±30°
≤±60°
≤±90°
≤±360°
Unit
Resolution





°
Accuracy
25℃




°
Response time





S

Temperature drift
-5~55℃
±0.5
±0.5
±0.5
±0.5
°

-25~70℃
±0.7
±0.7
±0.7
±0.7
°

-40~85℃
±0.8
±0.8
±0.8
±0.8
°
Output load
>500 ohm





Working time
50000 hours/time(no fault)





Insulation resistance
>100 ohm





Anti-shock
10grms,10~1000Hz





Impact resistance
100g@11ms,times/axis(half sinusoid)





Weight
60g





Certificate
CE;FCC;CCC;





Production standard
GB/T 191 SJ 20873-2003 tilt sensor,level sensor general specification





Quality system
ISO9001:2008 standard(certificate No.:128101)








Dimension
IP66 Anti Shock Analog Inclinometer Sensor PV Controller For Solar Tracker 0
Customer Photos
IP66 Anti Shock Analog Inclinometer Sensor PV Controller For Solar Tracker 2
IP66 Anti Shock Analog Inclinometer Sensor PV Controller For Solar Tracker 4



FAQ

Q1. What is your delivery terms?
A: EXW, FOB, CNF, DAP

Q2. What is your terms of payment?
A: T/T 100% , Paypal, or Alibaba

Q3. How about your delivery time?
A: Generally, it will take 7 days for production against the payment confirmation

Q4. Can you produce according to customers requirements?
A: Yes, we could provide customized solution.

Q5. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and
the courier cost.

Q6. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery

Q7: is refund acceptable if user test do not reach the technical parameter in the data sheet?
A. we accept return and refund, or return and replace if the product quality do not meet the data sheet value.
