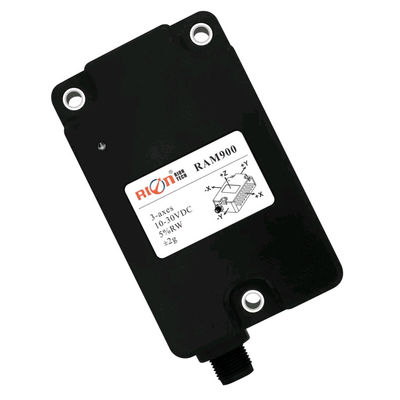

RAM900 Vibration Monitoring Sensor 4- 20mA Relay Switch Rotation Accelerometer

RAM900 CANopen Analog 4~20mA Relay Switch Type Rotation Accelerometer Vibration Monitoring Sensor

▶ INTRODUCTION
RAM900 Accelerometer is an acceleration sensor independently developed by Rion Technology to detect vibration and shock. It provides accurate acceleration for the control system through CANopen or analog interface. The selected capacitive MEMS sensor has the highest operating accuracy, especially at small amplitudes, where measurement errors due to cross-axis sensitivity are negligible. Therefore, the RAM900 is ideal for the precise acquisition of vibration, such as vibrations on wind turbine towers. Even if the accelerometer is mounted on a solid load-bearing machine part, measurement distortions caused by vibrations can still be excluded. The RAM900 uses a 4th-order low-pass filter to effectively suppress spurious frequencies, such as those caused by yaw brakes in wind turbines. Not only effectively compensates for offsets caused by installation errors or temperature drift, but also significantly improves accuracy. (Configurable: safety relay outputs can be integrated in any safety system and are activated when specified default limits are exceeded). Four factory-configured frequency bands with different filters can be fine-tuned according to the requirements of specific equipment types. For wind turbines, the RAM900 accelerometer is ideal for implementing the safety function "excessive shock and tower vibration protection". Long-term monitoring can prevent damage or even destruction of equipment. For the aggressive environment of category C5M, the shell design made of glass fiber reinforced plastic is the most ideal, and can ensure the long-term and safe operation of offshore engineering equipment. In terms of product reliability and stability, various measures such as industrial-grade MCU and three-proof PCB board are also used to improve the reliability of the product.

▶ MAIN FEATURES

★ Compact design
★ Analog and CANopen interfaces
★ Temperature range –40 ... +85 °C
★ 3DB bandwidth 25 Hz
★ Compensates for temperature drift and installation errors
★ IP67 protection level

▶ APPLICATION

★ Anti-sway control of gantry cranes
★ Side sway monitoring of operating platforms
★ Rotation detection of mining bucket excavators
★ Nacelle torsion monitoring of wind turbines
★ Vibration monitoring of large machines and equipment

▶ SPECIFICATIONS

RAM900	Condition	Parameter	Unit
Range	CANopen	±2	g
	Current	1	g
Axis	CANopen	X, Y, Z, |X,Y,Z|	Axis
	Current	|X|, |Y|	Axis
Bias calibration		<3	mg
Resolution	CANopen	1	mg
	Current	1	mg
Power-on repeatability		5	mg
Analog Sensitivity (±10%)		16	mA/g
Bias temperature coefficient		0.01	%/℃
Non-linearity		<0.5	%FS(max)
Long-term stability		<30	mg
Full tempe.e range working accuracy	-40～80℃	30	mg
Power-on start time		<2	s
Response time		0.002	s
Response frequency	12.5Hz
3DB bandwidth	25Hz
Output signal	CANopen, Analog(current 4~20mA),Switch (relay switch)
Supply voltage	Input 9~36VDC
Supply current	<50mA @12VDC
Relay switching threshold	No
CANopen(Baudrate)	Factory default(500Kbps)
CANopen(Node ID)	Factory default(0x04)
Weight	≤250g(not include cable)

Note: CAN bus terminal resistance can be added on request, or remark can be added to PCBA.
