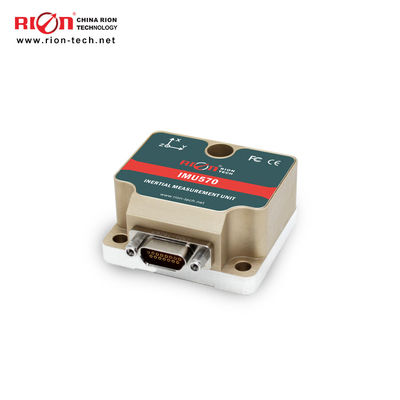

Temperature Compensation IMU570 IMU Sensor Inertial Measurement Sensor Harsh Environment Rang 38G Accelerometer Sensor
Feature
★ measure triaxial angular velocity of carrier
★ working temperature:-40~85℃
★ storage temperature :-40~85℃
★ Vibration:10~2000Hz,10g
★ power supply :+5±0.5V(DC)
★ impact:100g@11ms,Triaxial (half sinusoidal)
★ Autopilot Vehicle
★ Unmanned Aerial Vehicle
★AGV
★ SOTM attitude unit
★ POS System for Surveying and Mapping
★ Ship and Marine Engineering
★ Ocean and Underwater Surveying and Mapping
★ Flight Control System
★ High Speed Train Measurement and Control System
▶ SPECIFICATION
| IMU570 |
PARAMETERS | |
| Attitude angle | Roll / Tilt 1σ (Dynamic) | 0.5° |
| Heading | 0.5° | |
| Gyro | Measuring range | 1800°/s |
| Zero bias instability (@Allan variance) | ≤8°/h(-20~70 ℃) | |
| angle random walk (@Allan variance) | ≤0.13°/√h & 0.24°/√h | |
| Zero Bias Acceleration Sensitivity | ≤1°/h/g | |
| Resolution | ≤0.001°/s | |
| Scale factor nonlinearity | ≤100ppm | |
| Scale factor repeatability | ≤100ppm | |
| Cross-coupling | ≤0.1% | |
| Bandwidth | ≥200Hz | |
| Accelerometer | Measuring range | ±38g |
| Zero bias instability (@Allan variance) | 0.019mg | |
| Zero bias repeatability | 0.08mg | |
| Speed random walk (@Allan variance) | 0.04m/s/√h | |
| Zero Bias Error in Full Temperature Range | 0.5mg | |
| Other parameters | Power supply voltage | (+5±0.5)V(DC) |
| Power supply Current | Working current＜0.3A | |
| Working temperature | -40~85℃ | |
| Storage temperature | -40~85℃ | |
| Vibration | 10~2000Hz,10g | |
| Impact | 100g@11ms,3 Axial Direction (Half Sinusoid) | |
| Weight | ≤60g (excluding cables) | |
▶ ORDERING INFORMATION
| MODEL | DESCRIBE |
| IMU570-422 | RS422 output |
| IMU570-485 | RS485 output |
