OEM High Accuracy Digital Inclinometer with 3.7V Charging Lithium battery

1 Pieces
MOQ
$230.00/Pieces
Price
OEM High Accuracy Digital Inclinometer with 3.7V Charging Lithium battery
Features Gallery Product Description Request A Quote
Features
Specifications
Warranty: 1 Year
Customized Support: OEM
Digital Inclinometer Measuring Range: +/-180deg
Accuracy: <0.05deg
MM Measuring Range: 0~±999.9mm/m
MM Measuring Accuracy: 0.9(full Range)mm/m(RMS)
Product Size: L83*W53*H19.2mm
Resolution: 0.01°
Data Output Signal: Standard 5Pin USB Connector
LCD Visible Area Size: L40*W32 Mm
Power Supply: 3.7V Charging Lithium Battery
Working Temp.: -10 ~ 70C
High Light:

0.05deg High Accuracy Digital Inclinometer

,

3.7V High Accuracy Inclinometer

,

OEM High Accuracy Inclinometer

Basic Infomation
Place of Origin: Guangdong, China
Brand Name: RION
Certification: CE
Model Number: DMI410
Payment & Shipping Terms

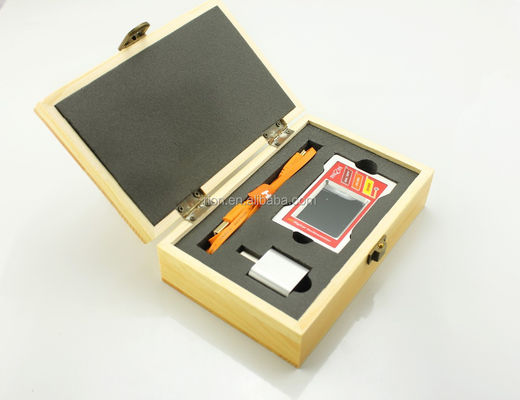

Packaging Details: 1 unit digital inclinometer in each inner wodeen box with thick sponge inside, 50pcs packed in strong &amp; safe carton
Delivery Time: 5 days for sample
Payment Terms: T/T, Paypal
Supply Ability: 3000/month
Product Description

High Accuracy mm Digital Inclinometer Factory Supply



Please click below link for download the datasheet of DMI410



DMI410 DMI420 DIGITAL DISPLAY INCLINOMETER.pdf

General Description

DMI410 is a digital display inclinometer which took RION company three years to develop professional for various industry angle control and measuring.The core of this product is using the micro-mechanical control principle, dual-core measurement unit, can use the Y-axis to compensate X-axis during the measurement process,a and then to use RION patent interleaved and temperature compensation model algorithm to play absolute operation advantages of the micro-mechanical electronic principles,to ensure that the instruments measurement with the long-term stability and repeatability. DMI410 is a uniaxial 360deg measurement, resolution 0.01 °,accuracy <0.05° degree full-scale,fast response, stable data, products specially designed for the sides and bottom with magnetic adsorption installation, both sides of the benchmark can be measured and using normally,very convenient to use, In addition, supporting the selection of DMI410 (SMI410) with the use of separate measurement, used in combination with the Division LCA series tilt sensor, the transmission mode wireless or wired optional, wireless using one-to-one band transmission,transmission straight line distance> 10m, the cable transmission standard 1 meter (can be customized long distance), DMI410 series
has strong scalability, convenient & practical application and industrial reliability, has absolute cost advantage and has an
absolute competitive advantage in the international market !

Key Features

★ Auto-angle interleaved compensation function ★ Auto temperature drift compensation
★ User can calibrate by himself ★ Built-in recharge industry battaries
★ Night vision fours colors screen ★ IP54 protection class
★ °/mm Dual units switch function ★ 100g High anti-impact


Application

★ Building construction ★ Automobile four-wheel testing ★ Road slope
★ Machinery installation ★ Piping installation ★ Industrial platform
★ Turntable testing ★ Cloud deck angle detection ★ Production jig

Specification
Angle measuring range
±180 °
Length measuring range
0~±999.9mm/m
Measuring axis
Single axis
Angle measuring accuracy
0.05 °(full range)°(RMS)
Angle measuring resolution
0.01°
Length measuring accuracy
0.9(full range) mm/m(RMS)
Length measuring resolution
0.17 mm/m
LCD visible area size
L40*W32mm
Working temperature
-10°~ +70℃
Working humidity
≤85℃
Power supply
3.7V Charging Lithium battery
Ideal charging time
3 hours
Battery continuous working time
8(±0.5)hours
Data output signal
Standard 5Pin USB connector
Anti-vibration
10g@11ms,3Times/Axis(half sinusoid)
Impact resistance
10grms,10~100Hz
Weight
125g
Waterproof level
IP54
Material
Metal aluminum
Size
L83*W53*H19.2mm
Packing & Delivery


OEM High Accuracy Digital Inclinometer with 3.7V Charging Lithium battery 3
OEM High Accuracy Digital Inclinometer with 3.7V Charging Lithium battery 5
OEM High Accuracy Digital Inclinometer with 3.7V Charging Lithium battery 7
ON/OFF: Press for 2seconds to power on or off ;
HOLD: This key to lock the current data, convenient customer records;
ZERO: This button can switch in the absolute and relative measurement mode;(screen display ABS means absolute status, display REL means relative measurement)
HOLD & ZERO: Press HOLD button until the screen appear a small lock sign then press ZERO, can switch in “Angle” and “mm/m” two units of measurement;
ON/OFF&HOLD: Press ON/OFF button until the screen to be black then press the HOLD button , can calibrate the accuracy according to the screen;
ON/OFF&ZERO: Press ON/OFF button until the screen to be black then press the HOLD button , can calibrate the ZERO according to the screen;
RESET HOLE: If the instrument occur a crash in working, key can't operation, can use the needlepoint hard object to insert into the hole for touch the button;
USB JACK: For charging purposes or Angle of external connection, data transmission;
WARNING LIGHT: Charging warning lights, lights up means is charging, light off mens has been filled with power then can take off the charger .( In order to keep the battery with a long life please don't use it as much as possible when it is charging with power.)
Company Profie

OEM High Accuracy Digital Inclinometer with 3.7V Charging Lithium battery 9
Shenzhen RION Technology, located in Shenzhen, a city overflowing with charms and miracles, is a high-tech enterprise specializing in developing, research, manufacture and sales of inclinometer, tilt switch, accelerometer, electronic compass, inertial attitude instrument etc. Based on the philosophy of specialization and marketization, RION engages itself in providing reliable service of sensor developing, sensor solution and customized developing&test solution. ISO9001 Quality Assurance System involves fully in factory production and management and ensures the best products and solution to be offered, winning satisfaction and reputation from customer. RION’s main products include inclinometer, digital inclinometer, tit switch, 3D electronic compass, accelerometer, inertial measurement unit(IMU) etc. And RION’s products could find suitable application in automobile, ship, plane, machinery, metallurgy, electric power, textile, railway, dam monitoring, armarium, petroleum drilling, coal mining, offshore exploration, precise surveying and mapping etc. Taking the opportunity of Chinese reform and open, RIONer, propelled by the Spirit of dedication, innovation and determination, turn RION into a leading manufacturer of position sensor out fo nothing. In 2008, RION set foot in international market, promoted its own brand toward the whole world and is becoming a flagship against many Chinese sensor companies on the way to globalization. In next 10 years, RION will always pivot at the trinity-design, quality and market-orientation, and develop itself into a creative, reliable and reputable sensor brand for the world.





FAQ
Q:  How to choose suitable products before ordering? A: According to your application, select the measurement axis , the appropriate measuring range, the main parameters of the output, or not sure, please contact us as soon as possible, our staff will be the first time to get in touch with you and provide the best solution and the most preferential price. Q:  What's kind of payment methods ? A: We support T/T and Paypal methods, you can choose any one, after payment, please inform us in time, so that we can arrange your order and deliver the goods as soon as possible. Q: How about lead time for order ? A: After we receive your payment, the samples will be sent in 3-7 working days. If mass order please confirm the delivery schedule with our sales staff in advance so as to avoid unnecessary delay. Q:  How about quality inspection before shipment ? We have several testing departments will be in strict accordance with the requirements of inspection of goods quality and functions, to ensure the quality of each with 100% qualified product, and the products will be inspected /tested again to ensure no any problem before shipment . Q: What's the transportation methods ? A: You can arrange courier to pick up goods from our company, or provide your international express account number to pay for your local courier after goods reach to your hands, but also can delivery by DHL, FEDEX, UPS, TNT, EMS... Etc through our shipping forwarder . Q:  How about after-sale service ? A: Please check the package status in time after receipt of the goods as soon as possible, and product performance test, if any quality problem please contact us first, we will deal with your problems and feedback as soon as possible. Q: How about product warranty and repair service? A: Warranty for one year, In general, we can provide the repaired service in free charge if non damaged within one year , and individual cases can be extended to 3 years or more. If over a certain warranty period or damage caused by user , we will charge a rea
